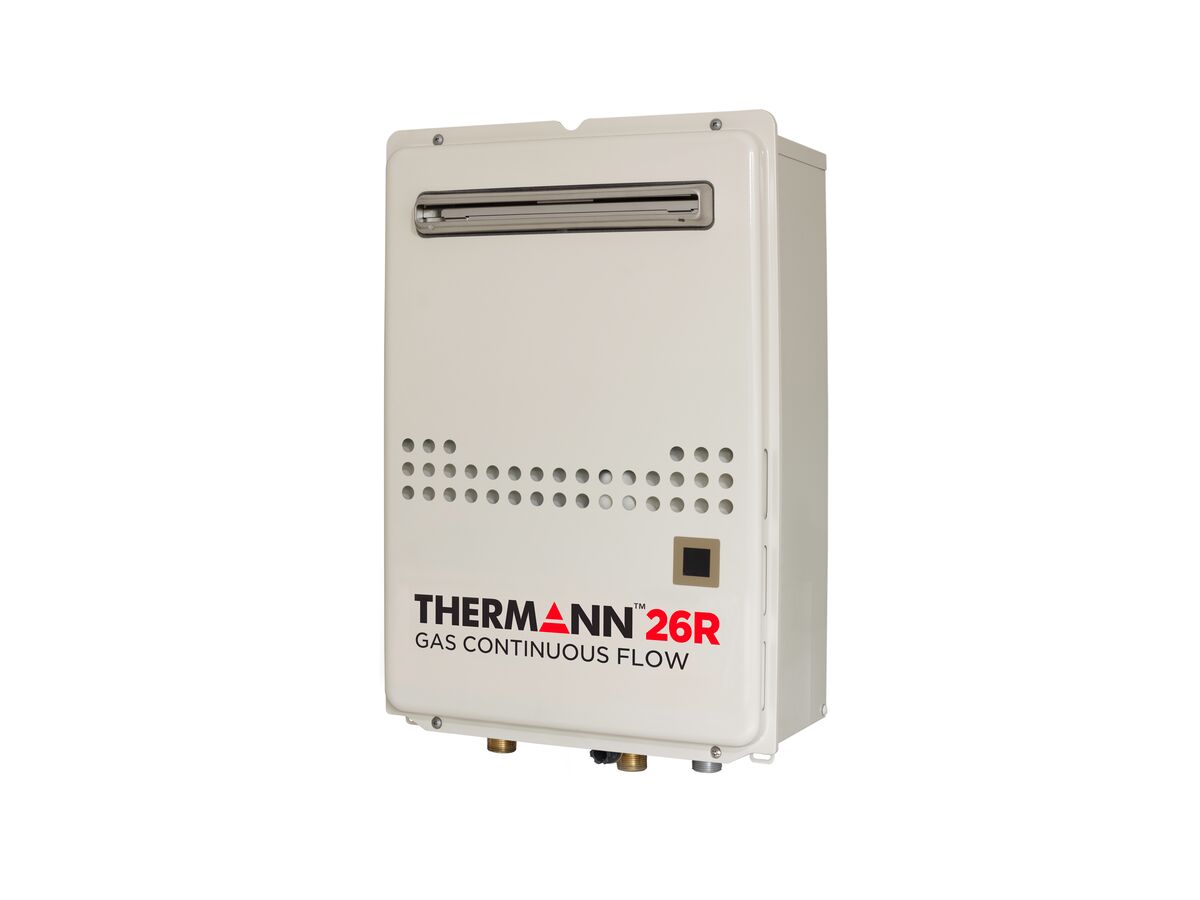

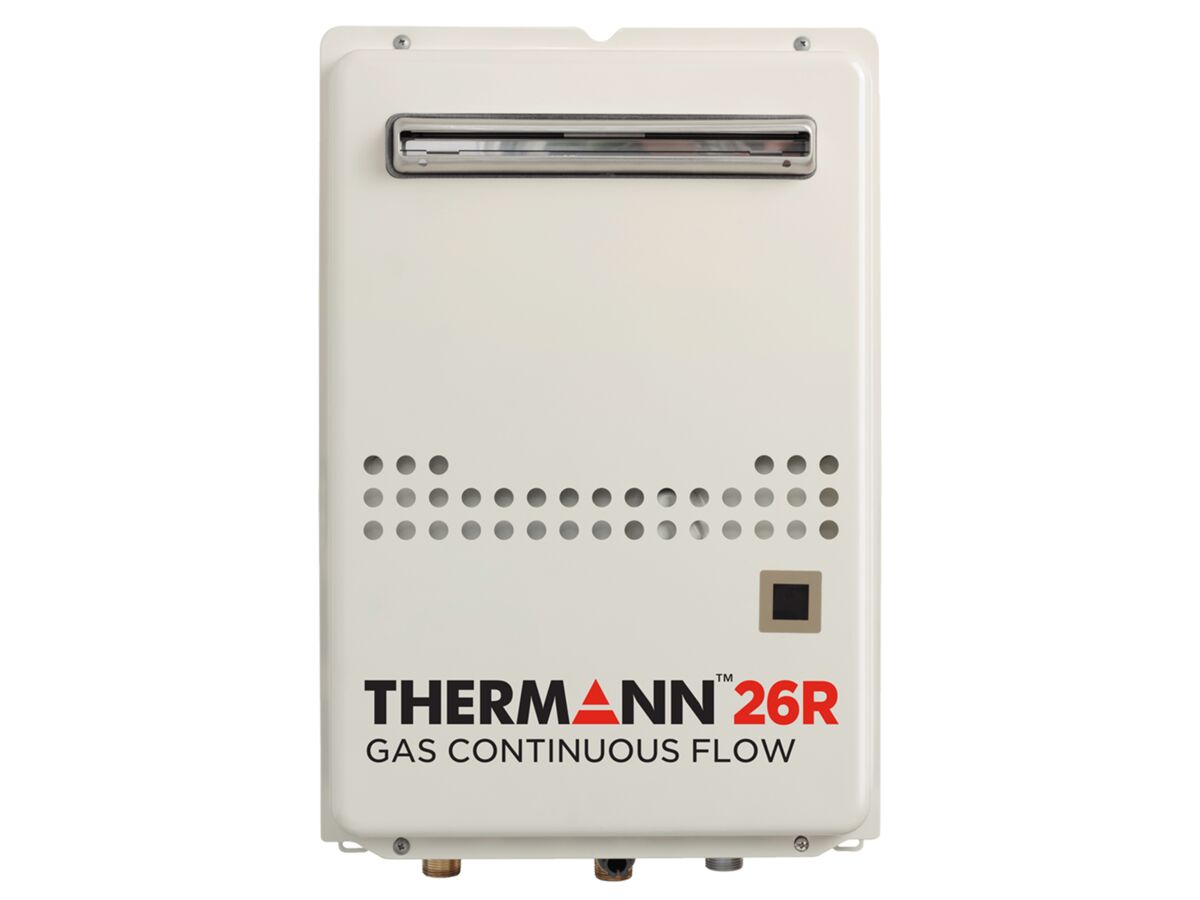

Thermann R Series
The R-Series range now includes the 17R, 21R, and 26R 50 Degree C models in addition to the existing large capacity 32R model in 50 Degree C and 60 Degree C options. The range provides sizing options for applications big, small, and everything in between.
The 26R model claims the title as the most efficient in its class*. It not only features an equivalent energy efficiency rating of 6.4 stars, but its low minimum flow rate makes it the perfect choice to combine with water efficient 6-star tapware.
Product Specifications

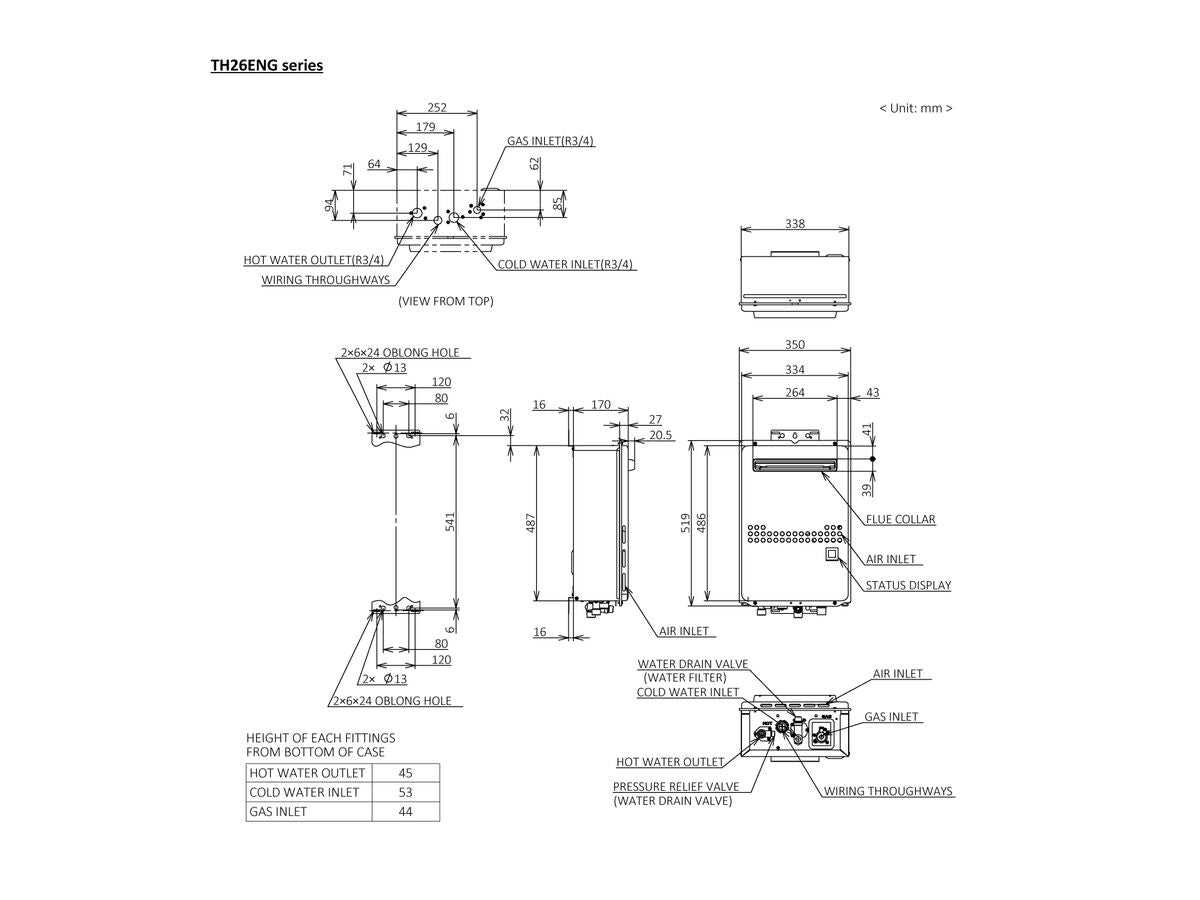

Size and Dimensions
| Width | 350 mm |
|---|---|
| Depth | 170 mm |
| Height | 520 mm |
| Approximate Weight (Empty) | 16 kg |
General Information
| No. Of Outlets | 3 |
|---|---|
| Gas Type | Natural Gas |
| Installation | External |
| Controllers Available | Yes |
| Part Number | TH26ENG5N |
| Website | www.thermann.com.au |
Technical Information
| Compliance Plate Location | Left hand side |
|---|---|
| Star Rating | 6.4 Star |
| Delivery Capacity (At 25 Deg C Rise) | 26 ltr/min |
| Fuel Type | Natural Gas |
| Gas Consumption | 195 MJ/h |
| Cold Water Connections | 20 mm |
| Hot Water Connections | 20 mm |
| Gas Connection | 20 mm |
Pressure Information
| Minimum Water Pressure | 200 kPa |
|---|---|
| Maximum Water Pressure | 1000 kPa |
| Minimum Gas Pressure | 1.13 kPa |
Temperature Information
| Temperature Setting | 50 deg C |
|---|
