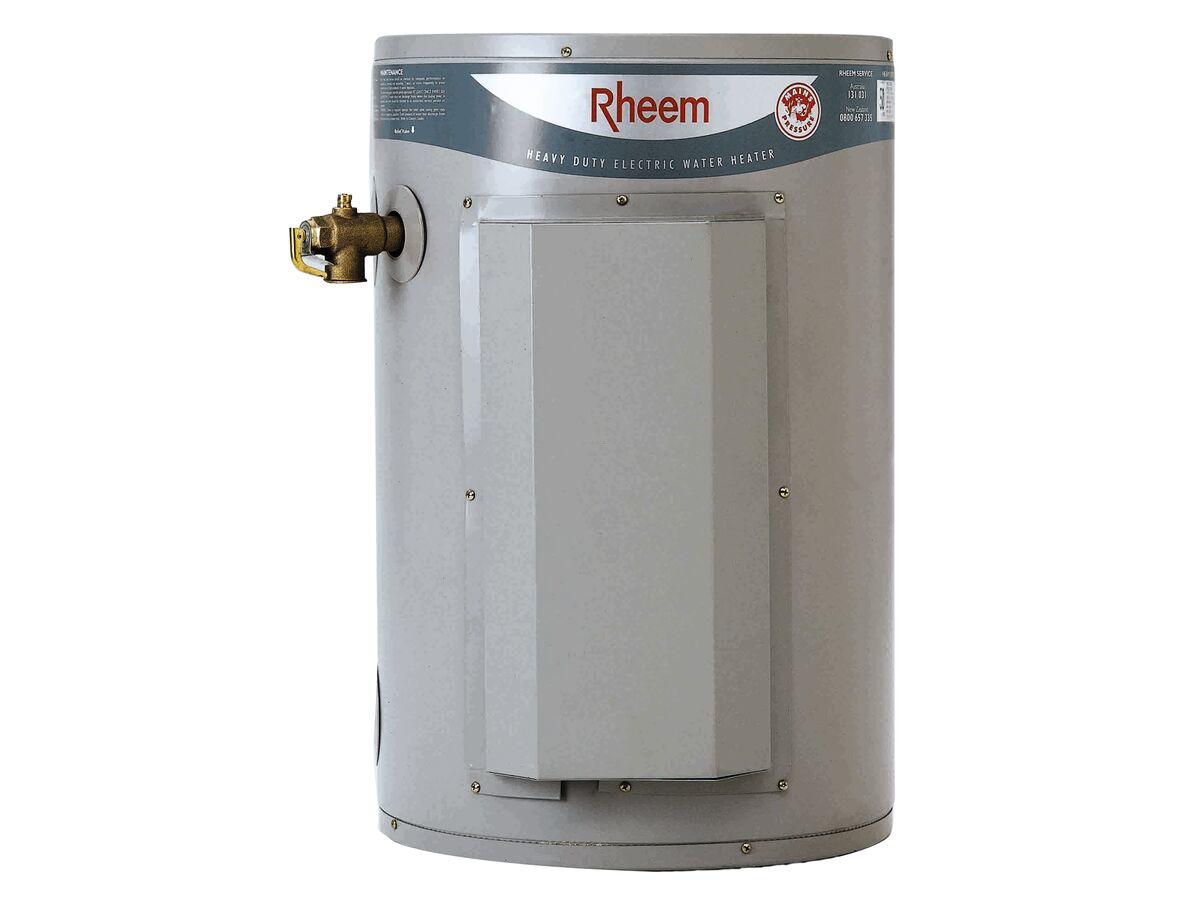

Rheem HD Electric
Impervious to all kinds of water. Made from a special grade of steel, lined with a double coat of heavy duty vitreous enamel and incorporates a larger anode.
Product Specifications

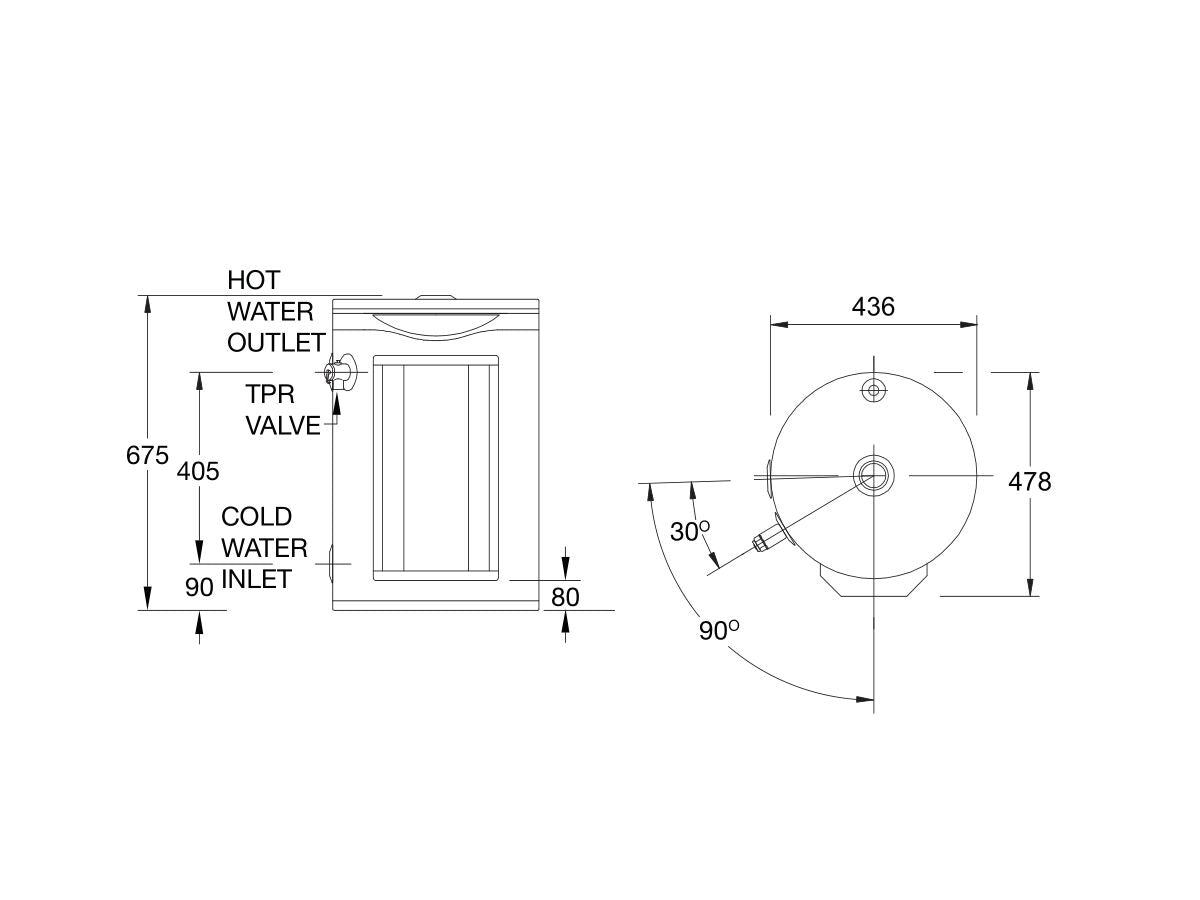

Size and Dimensions
| Width | 436 mm |
|---|---|
| Depth | 476 mm |
| Height | 675 mm |
| Approximate Weight (Empty) | 32 kg |
| Capacity | 60 ltr |
General Information
| Installation | Internal/External |
|---|---|
| Model Number | 61305007 |
| Product Type | COMMERCIAL |
Technical Information
| Hot Water Delivery | 50 ltr |
|---|---|
| Number Of Elements | Triple Element |
| Element Size | 3.6 kW |
| Inlet Connection | Rp1 1/4" |
| Outlet Connection | Rp1 1/4" |
| System Connections | Left Handed |
Pressure Information
| Expansion Control Valve Setting | 850 kPa |
|---|---|
| Maximum Inlet Pressure (With ECV) | 680 kPa |
| Maximum Inlet Pressure (Without ECV) | 800 kPa |
| Relief Valve Setting | 1000 kPa |
Power Information
| Power Supply | 415V |
|---|
Warranty
| Warranty Information | * Conditions apply: See the Rheem warranty at www.rheem.com.au/warranty |
|---|---|
| Spare Parts & Labour - Commercial Use | 12 Months |
| Cylinder Warranty | 5 Years |
Size and Dimensions
| Width | 436 mm |
|---|---|
| Depth | 476 mm |
| Height | 675 mm |
| Approximate Weight (empty) | 32 kg |
| Capacity | 60 ltr |
