Rheem
The Rheem 50L is perfect for tight spots where there's limited demand for hot water such as apartments, kitchens, offices and canteens.
Product Specifications

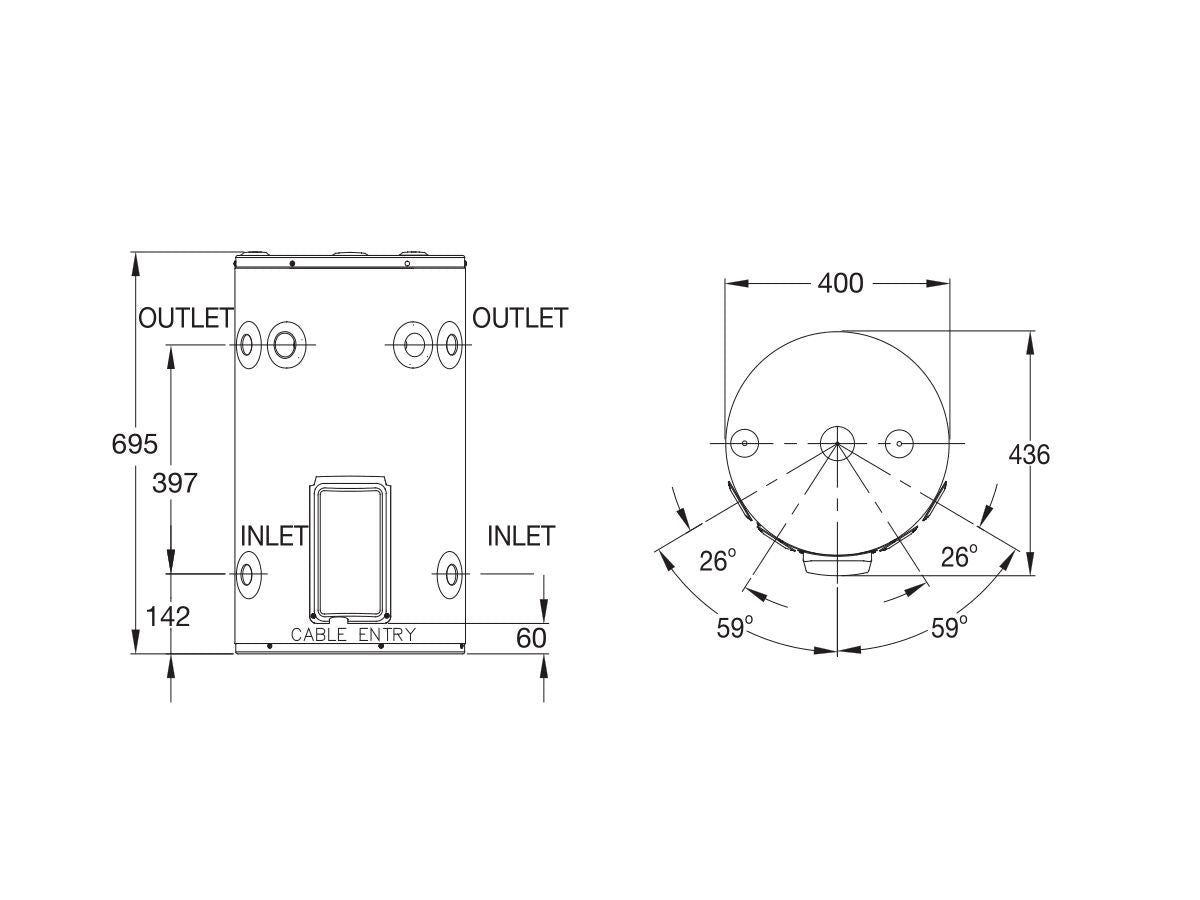

Size and Dimensions
| Width | 400 mm |
|---|---|
| Depth | 436 mm |
| Height | 695 mm |
| Approximate Weight (Empty) | 24 kg |
| Capacity | 50 ltr |
Features
| Small diameter | |
| 400mm and dual-handed connections | |
| Designed for restricted space installations | |
| Safe for wall mounting | |
| Wall mounting bracket using bracket 299120 |
General Information
| Hard Water Applicable | No |
|---|---|
| Installation | Internal/External |
| Model Number | 191050G7 |
| Product Type | Electric |
Material
| Tank Material | Vitreous Enamel |
|---|
Technical Information
| Number Of Elements | Single Element |
|---|---|
| Element Size | 3.6 kW |
| System Connections | Dual Handed |
| Cold Water Connections | 20 mm |
| Hot Water Connections | 20 mm |
Pressure Information
| Expansion Control Valve Setting | 1200 kPa |
|---|---|
| Maximum Supply Pressure - With ECV | 960 kPa |
| Maximum Supply Pressure - Without ECV | 1120 kPa |
| Relief Valve Setting | 1400 kPa |
