Rheem

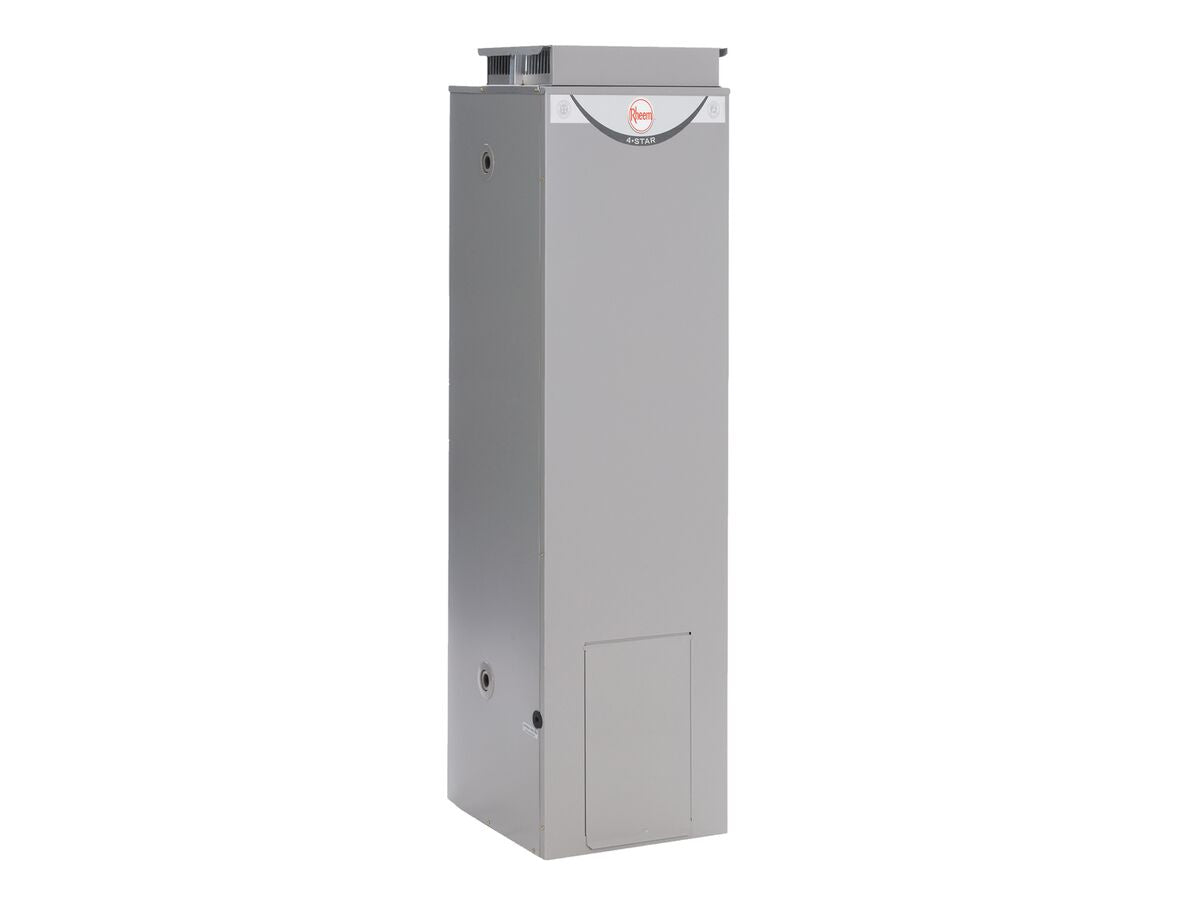

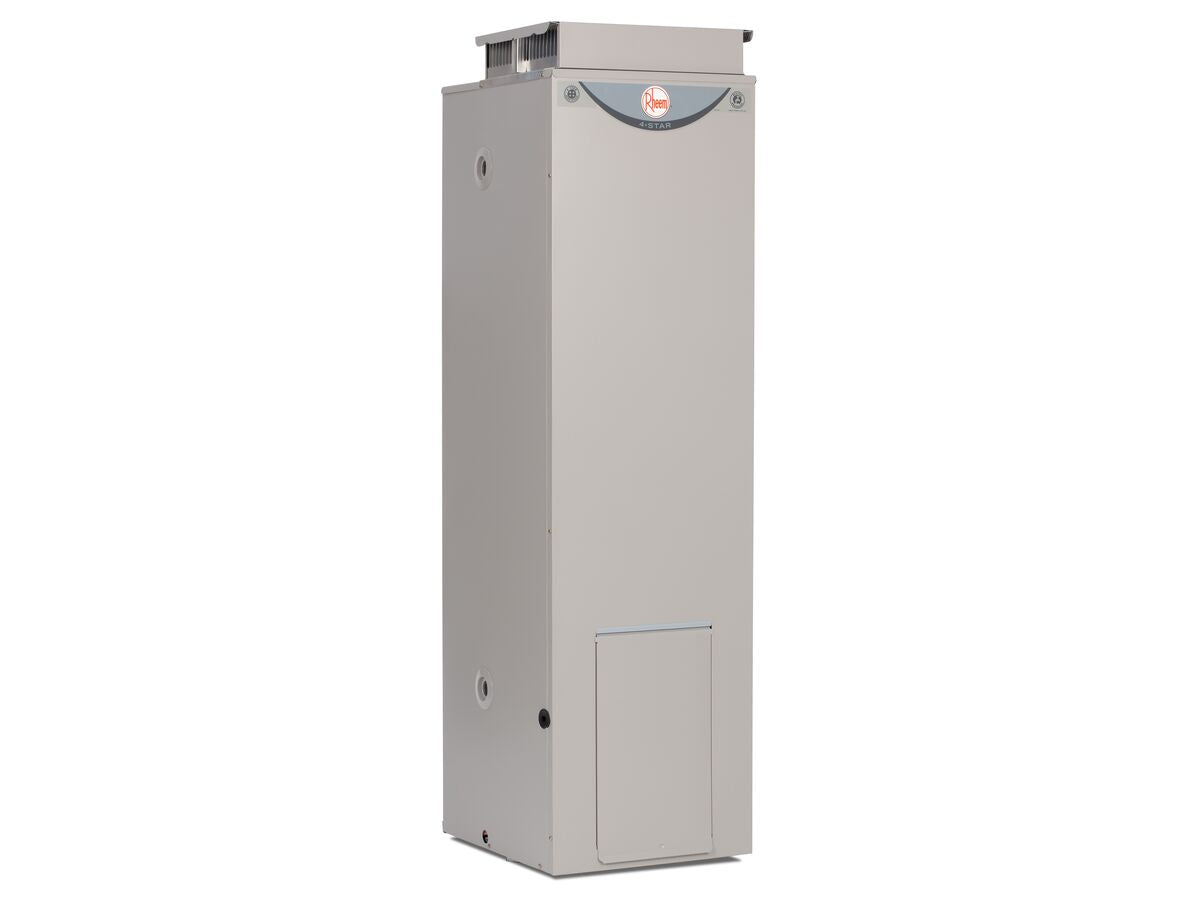

Reliable mains pressure hot water with a Rheem 4 Star 135L gas water heater.
Product Specifications

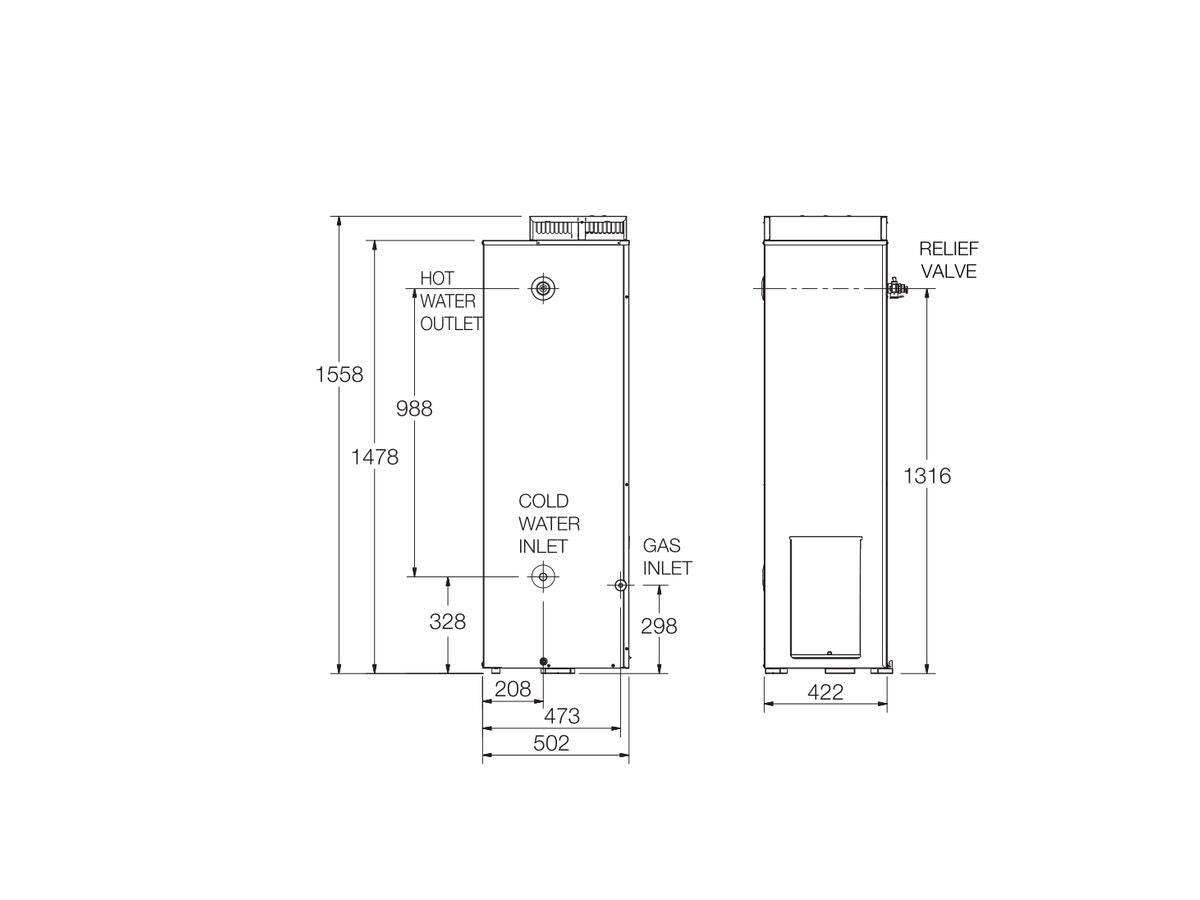

Size and Dimensions
| Width | 422 mm |
|---|---|
| Depth | 502 mm |
| Height | 1568 mm |
| Approximate Weight (Empty) | 62 kg |
| Inlet Height (Cold) | 328 mm |
| Inlet Height (Gas) | 298 mm |
| Inlet Size | 20 mm |
| Outlet Size | 20 mm |
Features
| 4 Star energy efficiency -uses less gas than most older heaters | |
| 248L first hour capacity - for less waiting time between showers | |
| Made in Australia |
General Information
| No. Of People | 5 |
|---|---|
| Gas Type | Natural Gas |
| Hard Water Applicable | No |
| Installation | External |
| Model Number | 347135N0 |
| Product Type | Gas Storage |
Material
| Tank Material | Vitreous Enamel |
|---|
Technical Information
| Tank Capacity | 135 ltr |
|---|---|
| Star Rating | 4 Star |
| Gas Consumption | 27 MJ/h |
| Cold Water Connections | 20 mm |
| Hot Water Connections | 20 mm |
| Gas Connection | 15 mm |
Pressure Information
| Expansion Control Valve Setting | 1200 kPa |
|---|---|
| Maximum Supply Pressure - With ECV | 960 kPa |
| Maximum Supply Pressure - Without ECV | 1120 kPa |
| Relief Valve Setting | 1400 kPa |
Warranty Information
Warranty
| Warranty Information | * Conditions apply: See the Rheem warranty at www.rheem.com.au/warranty |
|---|---|
| Spare Parts & Labour - Domestic Use | 12 Months |
| Cylinder Warranty | 10 Years |
